ضخامت سنج التراسونیک یکی از پرکاربردترین ابزارها برای انجام تست های بدون تخریب میباشد که جهت اندازه گیری ضخامت اجسامی که به یک سطح آن دسترسی داریم.کاربردهای متنوع این تکنولوژی، جهت اندازه گیری پوشش و خوردگی را در بخش های مختلف صنعت ، ممکن ساخته است.

 ضخامت سنج التراسونیک برند wintact مدل WT100A

 رنج اندازه گیری : 1 تا 225 میلیمتر

 دارای صفحه نمایش رنگی

 دارای پراب 5 مگاهرتز

 دقت اندازه گیری : 0.01 میلیمتر

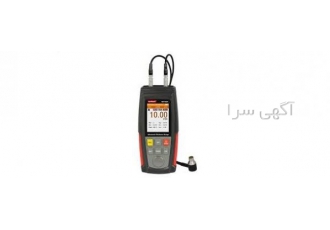

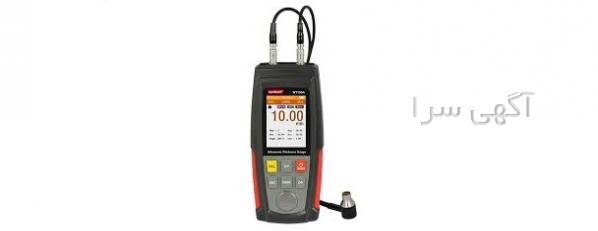

 WT100A Ultrasonic Thickness Gauge

 The intelligent and hand-held ultrasonic thickness gauge is controlled by a microprocessor, which can measure thickness and sound speed of various materials quickly, accurately and without damage by ultrasonic measurement. This instrument is capable of accurate measurement for different materials or parts in industrial production, as well as monitoring pipelines and pressure vessels of production equipment, and corrosion degree of various parts in use. It can also be widely used in manufacturing, metal processing, commodity inspection and other testing areas. Any material that allows ultrasonic to transmit at a constant speed and that is distinguishable from waves reflected from the back side is applicable to this instrument. 1.1. Application scope The thickness of any good conductor for ultrasonic waves with top and bottom surfaces parallel to each other, like metal,plastic, ceramic and glass, can be measured with the instrument.For example: aluminum, copper, gold, resin, water, glycerin, etc.petro farhan gostar joonob co / The internal particles of cast iron are too big for this instrument!

 Measuring range 1.00~225.0mm
 Data storage 15 0 0
 Probe selection √
 Operation frequency 5MHz
 Measurement error ±( 0.5%H+ 0.05)mm
 Lower limit of pipe measurement Φ20x3mm (steel)
 Adjustment range of sound speed 1000~9999m/s
 Temperature range of operation 0~40℃
 Battery 3 Ni-MH rechargeable batteries of 1.2V
 USB charging 5V 1A
 Dimensions 65x146x30mm
 Weight 130G
 Probe Measurement parameters

 5Md10 1.0~300.0mm
 5Md6 1.0~100.0mm
 2. 5M 1.2~300.0mm
 High temperature 1.2~300.0mm
