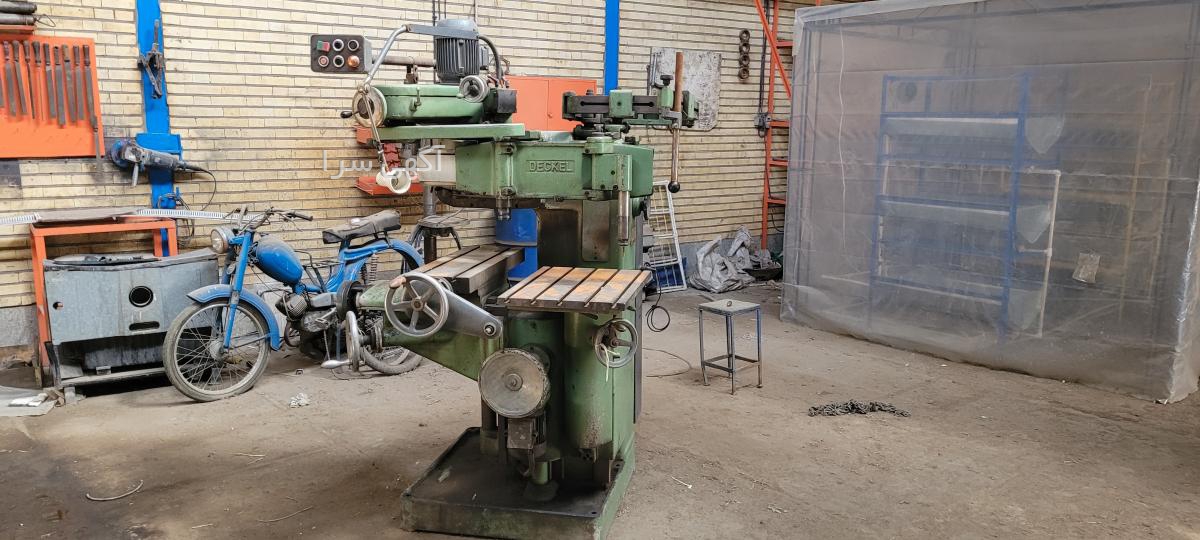

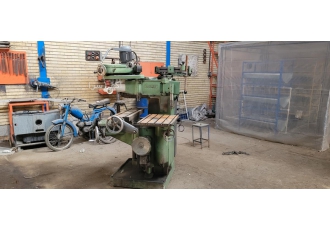

کپی تراش Deckel آلمانی Speed range pre milling spindle 60 1000 rpm

Speed range pre-milling spindle 60 - 1000 rpm
Speed range finishing spindle with V-belt 350 - 10000 rpm
TOOL SLIDE
Distance milling cutter to stylus 450 / 350 mm
vertical movement 50 mm
Longitudinal movement 300 mm
transversal movement 180 mm
FIXED WORKING TABLE 250 x 700 mm
distance to spindle nose 475 mm
movement lengthwise and crosswise 300 x 200 mm
max. workpiece weight 600 kg
drive power 0,9 / 1,1 kW
dimensions approx. L x W x H 1350 x 1600 x 1950 mm
weight approx. 1,5 t
