رله های حفاظتی VAMP اشنایدر (schneider تامین رله های حفاظتی Sepam

تامین رله های حفاظتی Sepam و VAMP , MiCOM شرکت اشنایدر الکتریک (Schneider Electric) فرانسه
با هولوگرام اشنایدر ایران

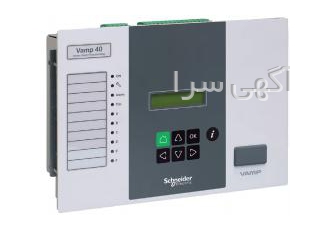

رله های VAMP 40 - VAMP 50 - VAMP 230 - VAMP 255 - VAMP 265 VAMP210 VAMP 57 VAMP 55 و تمام متعلقات (Accessories)
ارائه خدمات تخصصی در زمینه رله های حفاظتی
با زمان تحویل فوری

smoyass... [نمایش کامل]
---------------------------------------- ---------------------------------------- --------------------------------
Schneider VAMP VAMP 40 VAMP 52 VAMP 50 VAMP 55 VAMP 40 VAMP230 VAMP 255 VAMP265 VAMP 200

VAMP 52 Feeder and Motor Protection Relay
Key Features:

• Multifunctional yet user-friendly
• Extensive thermal protection functions optimal for low and medium-sized
asynchronous motors
• Directional earth fault protection and auto-reclose for the feeder protection
applications where automatic fault clearance is needed
• 12 programmable LEDs : 2 fixed (power, error) and 8 freely programmable with
2 freely programmable push buttons (with LEDs)
• Single line diagram mimic with control, indication and live measurements
• Flexible hardware design for easy addition of optional modules including arc
sensor interface, extension of DI / DO channels and various communication
module adaptors
• Unicode language support for translation into any language
• Available as a slimline (S) case version
• Digital multifunction relay for asynchronous motors
• Large display for mimic and measurements
• Control keys for operational mode changes
• Control keys for object control
• Optional mA output
• Two optional module slots for arc sensor, Input/Output extension or various
communication interfaces
• Connectivity to PTD input module

---------------------------------------- ---------------------------------------- ---------------------------------------- --------

رله حفاظتی اشنایدر VAMP 265
Key Features:

• Complete differential protection for generators, transformers and motors
• Use together with VAMP 210 for a complete generation protection scheme
• High stability against through faults
• 2nd and 5th harmonic blocking
• Inbuilt Ethernet interface with Native IEC61850 communication including
GOOSE messages
• Numerical CT ratio correction
• Selectable connection groups
• Event handling and fault registration, up to 2000 event records
• Disturbance recorder
• Dual slope bias characteristic with fast operating time
• High stability during through faults
• Two differential overcurrent stages: Overcurrent stage and Earth fault overcurrent stage
• CB Failure protection
• Optional arc protection
• Standard VAMP communication modules for connecting the relay to various system communication solutions and medias (order options)

---------------------------------------- ---------------------------------------- ---------------------------------------- --------

رله حفاظتی اشنایدر VAMP 230
Key Features:

• Feeder and motor manager suitable for various current and voltage
applications
• 5 Current & 3 Voltage inputs allows use of directional o/c and various
voltage-based protection stages
• Auto-reclose functionality
• Non-volatile memory storage
• Event handling and fault registration, up to 2000 event records
• Optional arc protection
• Active, reactive and apparent power as well as energy measurements
• Supports maximum 8 Digital Inputs and 7 Digital Outputs
• Connectivity to PTD input module
• Inbuilt Ethernet interface with Native IEC61850 communication including
GOOSE messages
• Standard VAMP communication modules for connecting the relay to various
system communication solutions and medias (order options)
• Digital multifunction motor manager for asynchronous and synchronous motors
• Voltage transformer connections allow use of directional overcurrent and earth
fault protection in addition to various motor protection stages
• Input/Output capacity varies per product type
